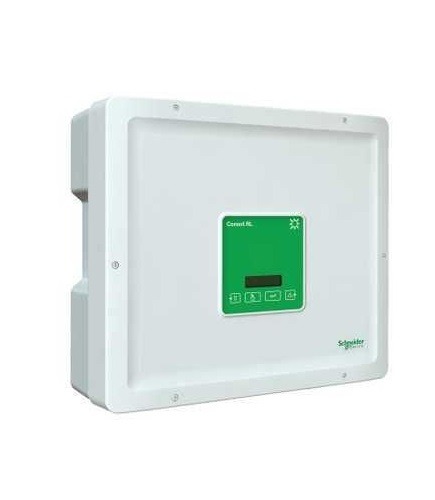

Schneider Conext RL 5000E Single-Phase Solar Inverter 5KW

Download Product PDF

Main

• range of product Conext RL
• device short name RL 5000 E
• product or component type Grid-tie solar inverter
• network number of phases 1 phase
• nominal output power 5 kVA

Complementary

• photovoltaic power 3.2 kW input power per MPPT
• 3 kW input power for maximal output power
• output voltage 230 V AC (nominal)
• 184 … 276 V AC
• number of MPPT 2 output current 23.2 A AC network frequency 50/60 Hz +/- 5 Hz (output) cos phi 0.8 leading to lagging harmonic distortion <3% input voltage <= 550 V DC open circuit
• 180 … 500 V DC MPPT
• 90 … 550 V DC operating
• 100 V DC at start
• input current 18 A efficiency 97% European
• 5% peak
• power consumption in W <1 W night time topology Transformerless function available Embedded data logger for 365 days
• Standard integrated DC disconnect (optional)
• relay type Multifunction control relay display type LCD messages display capacity 2 lines of 16 characters communication interface Modbus (RS485)
• Ethernet (optional)
• connector type Multicontact MC4 – input)
• – (IP67 – output)
• type of cooling Natural convection
• height 44.5 cm
• width 51 cm
• depth 17.7 cm
• product weight 24 kg
• acoustic level <40 dBA e
• nclosure material Aluminum
• marking CE
