Description

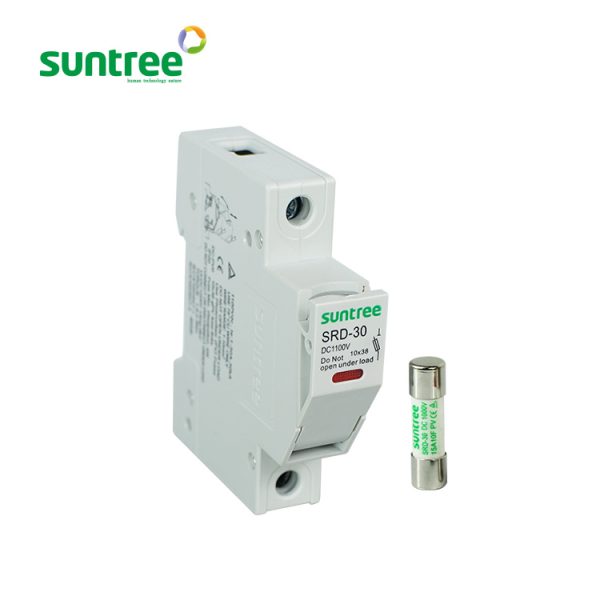

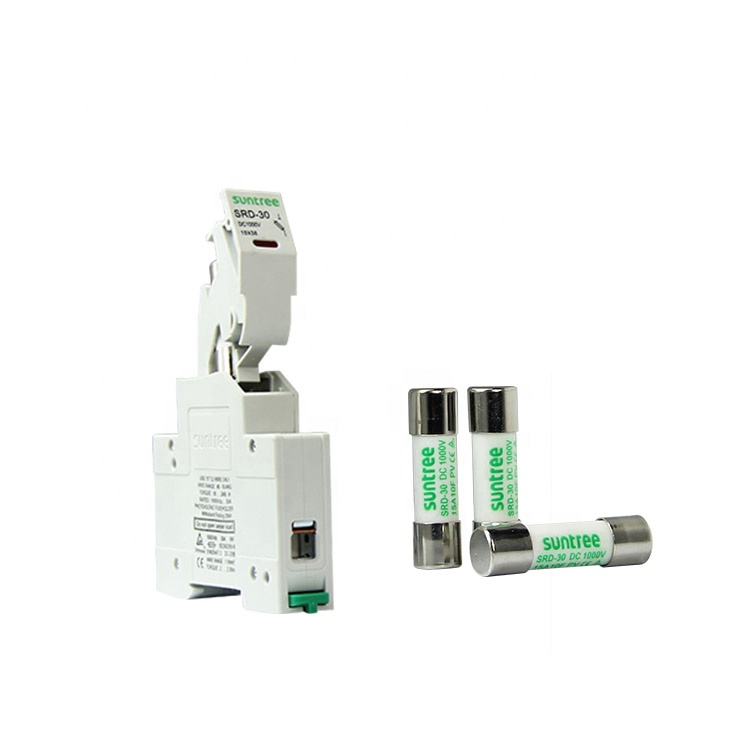

A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
Specification
| Products Name | Solar Pv Fuse |
| Application | DC System |
| Max Voltage | 1100VDC |
| Fuse Link Size | 10X38mm2 |
| Rated Fuse Current | 1A-32A |
| Certifictae | TUV CE CB |
| With working indicator led lamp | Yes |
| Material | Nylon,Copper |
| Type | gPV |
| Standard | IEC60947-3 |
| Interruppting Capacity | 30000A |
| Blowing time at 113% of current Rating | 1 hours Minimum |
| Blowing time at 145% of current Rating | 1 hours Max |
